6 Heads Embroidery Machine, 9/12/15 Needles

Model: WY906CH/WY1206CH/WY1506CH

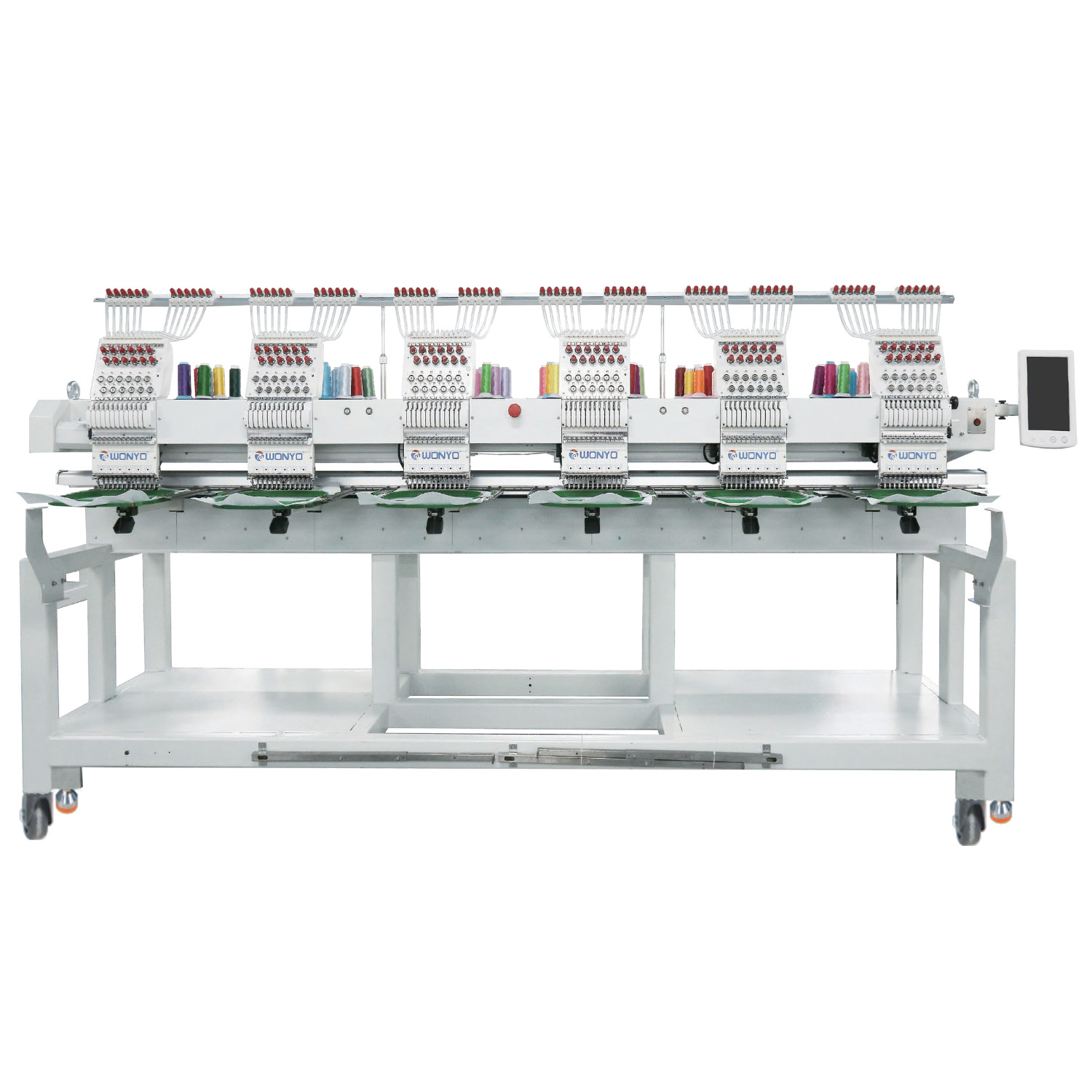

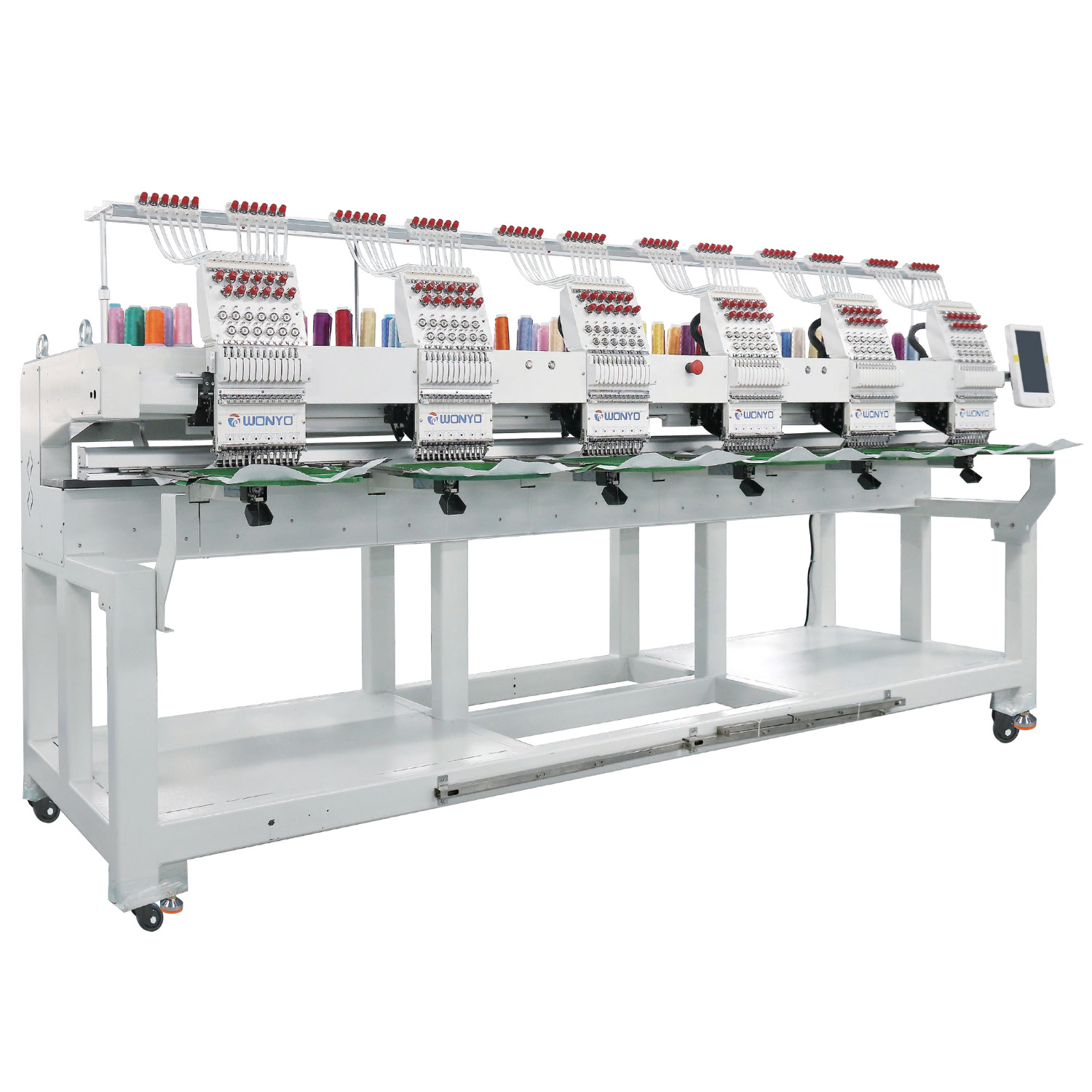

WONYO versatile 6 head embroidery machine is designed with 9/12/15 needles and a maximum embroidery area of 400*450mm.

Application: suitable for caps, tshirts, garments, pants, pocket, bag, shoes, tablecloth, various thickness of fabric and leather etc.



Description

Samples



Features

  • 12” LCD touch screen with easy operations and 16 languages: Chinese, English, French, Spanish, Portuguese, Turkish, German, Dutch, Thai, Arabic, Romania, Italian, Vietnamese, Hebreo, Polish, etc.
  • Large memory capacity: 20 million stitches or 200 designs.
  • Machine reads multiple design formats such as DST, DSB and more.
  • Thread break detection system.
  • Automatic needle threading and thread trimming.
  • 270° wide angle cap frame.
  • Automatic color change with a maximum change orders of 200 times.
  • Emergency stop button for timely troubleshooting.
  • USB input or direct transmission from PC via LAN port.
  • Quick changes of embroidery hoops of multiple sizes.
  • Removeable embroidery table.
  • Optional swivel casters for easy motion.

Specifications

Machine Name WY906CH/WY1206CH/WY1506CH
Heads 6
Needles per head 9/12/15
Maximum speed in stitches per minute (SPM) Max 1000SPM
Maximum embroidery area 400*450mm (15.7”*17.7”)
Memory capacity 20 million stitches or 200 designs
Control panel 12” LCD display with 16 language
Safety features Emergency stop button, heat dissipation fan
Use Flatbed, cap, finished garments
Number of hoops 61
Attachments 12pcs cap rings, 6pcs cap driver, 1pcs hoop station
Weight 1185kg
Design transfer options Ethernet connection, USB
Additional features 270-degree wide angle cap system
Packing Size (mm) 3560*1160*1740mm
Voltage 100-250V
Power 1000W

Video

Machine dimension (mm)

Download

Download “Multi Head Embroidery MANUAL” TE-515L-Embroidery-machine-computer-use-manual-V1.0.pdf – Downloaded 507 times – 2 MB
