Single Head Embroidery Machine, Wide Area

Model: WY1201CL/1501CL

WONGYO WY1201CL/1501CL single head embroidery machine provides wide embroidery area: 360*1200mm,500*800mm or 500*1200mm. This wide area embroidery machine is suitable for embroidering small items like caps, T-shirts, pants, trousers, shoes, tablecloths, as well as long items such as robes and gowns.

Application: suitable for caps, tshirts, garments, pants, pocket, bag, shoes, tablecloth, various thickness of fabric and leather etc.





  • Automatic identification of embroidery designs in photo formats, such as JPG, JPEG, PNG and more.
  • 10” LCD touch screen with easy operations and 16 languages: Chinese, English, French, Spanish, Portuguese, Turkish, German, Dutch, Thai, Arabic, Romania, Italian, Vietnamese, Hebreo, Polish, etc.
  • Large memory capacity: 20 million stitches or 200 design patterns.
  • Machine reads multiple design formats such as DST, DSB and more.
  • Thread break detection system.
  • Automatic needle threading and thread trimming.
  • 270° wide angle cap frame.
  • Automatic color change with a maximum change orders of 200 times.
  • Emergency stop button for timely troubleshooting.
  • USB input or direct transmission from PC via LAN port.
  • Quick changes of embroidery hoops of multiple sizes.
  • Removeable embroidery table.
  • Optional swivel casters for easy motion.


Machine Name

WY1201CL / WY1501CL

Heads 1
Needles per head 12/15
Maximum speed in stitches per minute (SPM) Max 1200SPM
Maximum embroidery area 360x1200mm (14”*47”)
500*800mm (19.7”*31.5”)
500*1200mm (19.7”*47”)
Memory capacity 20 million stitches or 200 designs
Control panel 10” LCD display with 16 language
Safety features Emergency stop button, heat dissipation fan
Use Flatbed, cap, finished garments

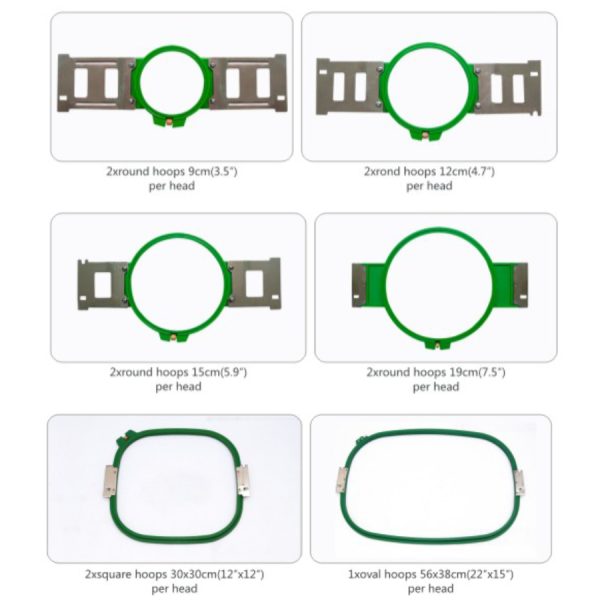

Number of hoops 10
Attachments 2pcs cap rings, 1pcs cap driver, 1pcs hoop station
Weight 225kg
Design transfer options Ethernet connection, USB
Additional features 270-degree wide angle cap system
Packing Size (mm) 1530*950*1040mm
Voltage 100-250V
Power 150W

Machine dimension (mm)


Download “Single Head Embroidery Manual”

TE-510H-Embroidery-machine-computer-use-manual-V1.0.pdf – Downloaded 684 times – 2.90 MB
