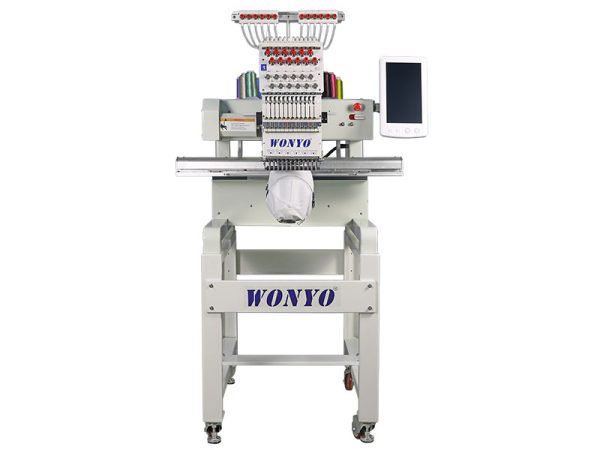

Single Head Embroidery Machine, 12/15 Needles (Updated Version)

Categories ,
Model: Q1201/Q1501

Q1201/Q1501 single head embroidery machine is suitable for embroidering on all types of fabric and leather, which features light weight and compact structure. With a maximum embroidery area of 400*600mm, this embroidery equipment can meet various customer’s demands.

Updated based on other models, this embroidery machine offers high quality embroidery, extremely low fault rate and maintenance costs.

Application: suitable for caps, tshirts, garments, pants, pockets, bags, shoes, tablecloths, various thickness of fabric and leather etc.

REQUEST A QUOTE
ASK PRICE ON WHATSAPP
ASK PRICE ON SKYPE

Description

Samples



Features

  • Automatic identification of embroidery designs in photo formats, such as JPG, JPEG, PNG and more.
  • 10” LCD touch screen with easy operations and 16 languages: Chinese, English, French, Spanish, Portuguese, Turkish, German, Dutch, Thai, Arabic, Romania, Italian, Vietnamese, Hebreo, Polish, etc.
  • Large memory capacity: 20 million stitches or 200 designs.
  • Machine reads multiple design formats such as DST, DSB and more.
  • Thread break detection system.
  • Automatic needle threading and thread trimming.
  • 270° wide angle cap frame.
  • Automatic color change with a maximum change orders of 200 times.
  • Emergency stop button for timely troubleshooting.
  • USB input or direct transmission from PC via LAN port.
  • Quick changes of embroidery hoops of multiple sizes.
  • Removeable embroidery table.
  • Optional swivel casters for easy motion.

Specifications

Machine Name Q1201/Q1501
Heads 1
Needles per head 12/15
Maximum speed in stitches per minute (SPM) Max 1200SPM
Maximum embroidery area 400*600mm (15.7”*23.6”)
Memory capacity 20 million stitches or 200 designs
Control panel 10” LCD display with 16 language
Safety features Emergency stop button, heat dissipation fan
Use Flatbed, cap, finished garments

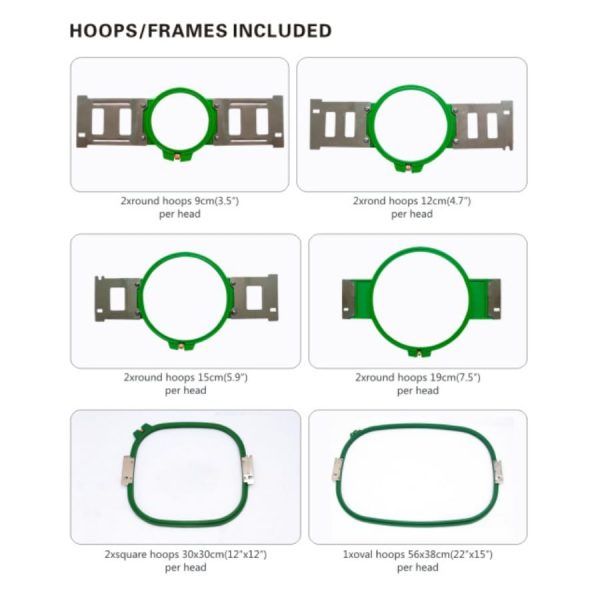

Number of hoops 10

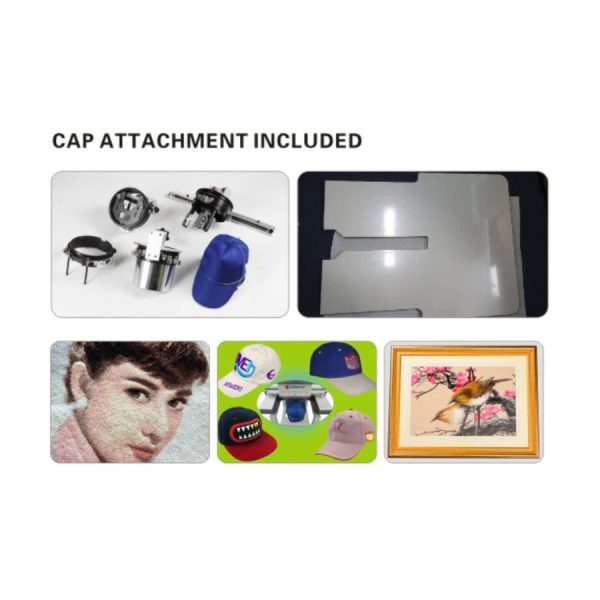

Attachments 2pcs cap rings, 1pcs cap driver, 1pcs hoop station
Weight 170kg
Design transfer options Ethernet connection, USB
Additional features 270-degree wide angle cap system
Packing Size (mm) 1430*1030*1040
Voltage 100-250V
Power 150W

Machine dimension (mm)

Download

Download “Single Head Embroidery Manual”

TE-510H-Embroidery-machine-computer-use-manual-V1.0.pdf – Downloaded 684 times – 2.90 MB
